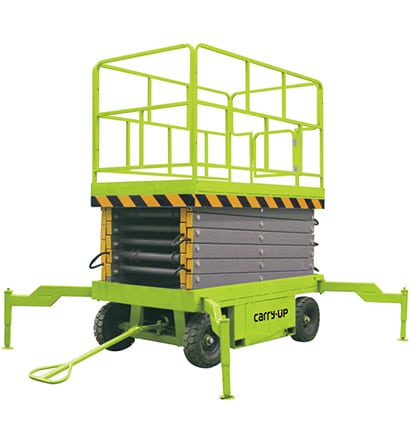

SF03 Mobile Scissors Lift Platform (Small)
Mobile Scissors Lift Platform (Small)
SF0.3-1.8, SF0.3-3, SF0.3-3.9
Max.Load Capacity:300kgs
Max.Platform Height:1800mm-3900mm
- 24-Hour Online Support
- Global Service Network
- Technical Solutions
- Specifications
- Feature and Details
| Mobile scissors lift platform (Small) | |||||||||
| Specification | 1 | Model | SF0.3-1.8 | SF0.3-3 | SF0.3-3.9 | ||||
| 2 | Platform Height（Max) | mm | 1800 | 3000 | 3900 | ||||
| 3 | Platform Height (Min) | mm | 550 | 650 | 750 | ||||
| 4 | Platform Size | mm | 1150×600 | 1150×600 | 1150×600 | ||||
| 5 | Overall Length | mm | 1280 | 1280 | 1280 | ||||
| 6 | Overall Width | mm | 760 | 760 | 760 | ||||
| 7 | Overall Height (Folding) | mm | 1640 | 1720 | 1800 | ||||
| 8 | Max.Load | kg | 300 | 300 | 300 | ||||
| 9 | Elevating Rise Time | S | 10 | 33 | 53 | ||||
| 10 | Elevating Fall Time | S | 7 | 30 | 50 | ||||
| 11 | Lifting Motor | V/kw | 12/0.8 | 12/0.8 | 12/0.8 | ||||
| 12 | Integrated Charger | V/A | 12/15A | 12/15A | 12/15A | ||||
| 13 | Weight | kg | 360 | 390 | 450 | ||||
