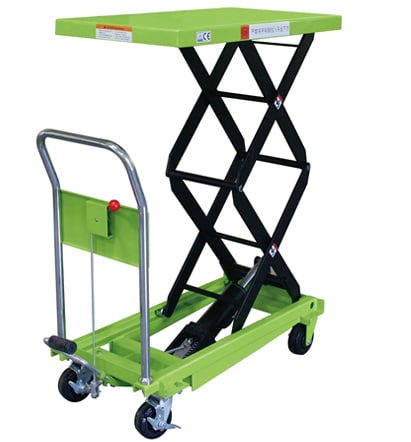

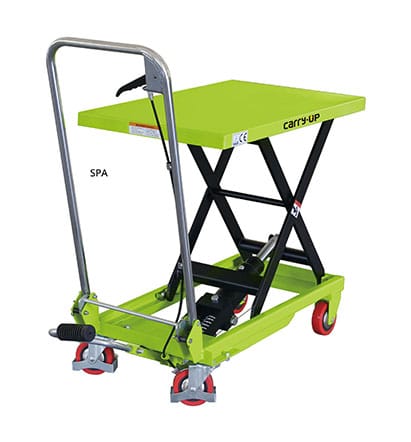

SPS150/SPS350/SPS500/SPS800 Lift Table
SPS LIFT TABLE
SPS150, SPS350,SPS500,SPS800
Load Capacity: 150kgs,350kgs,500kgs,800kgs
Max.Lift Height: 1320mm
- 24-Hour Online Support
- Global Service Network
- Technical Solutions
- Specifications
- 3D View
| SPS LIFT TABLE SPECIFICATION | |||||||||
| Specification | 1 | Model | SPS150 | SPS350 | SPS500 | SPS800 | |||
| 2 | Capacity | kg | 150 | 350 | 500 | 800 | |||
| 3 | Max. lift height | h12(mm) | 1100 | 1300 | 1550 | 1500 | |||
| 4 | Min. height of table | h13(mm) | 302 | 350 | 410 | 475 | |||
| 5 | Lifting height | h3(mm) | 798 | 950 | 1025 | 1025 | |||
| 6 | Table size | l x b5 x s(mm) | 700×450×35 | 910×500×52 | 1010×520×60 | 1220×610×60 | |||
| 7 | Foot pedal cycles to max height | <=30 | <=60 | <=70 | <=70 | ||||
| 8 | Service weight | kg | 64 | 105 | 172 | 172 | |||
| 9 | Carton size | mm | 860×485×300 | 985×510×350 | 1370×645×470 | 1370×645×470 | |||
| 10 | Total height | h14(mm) | 920 | 970 | 969 | 961 | |||
| 11 | Tyre size | d(mm) | ￠100 | ￠127 | ￠127 | ￠150 | |||
