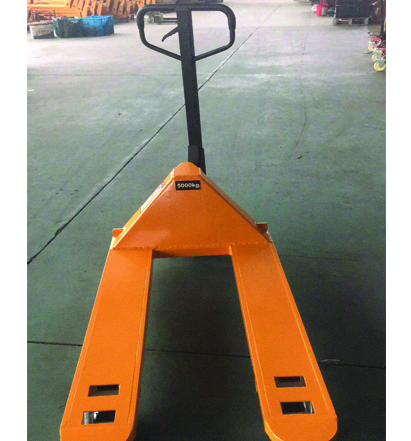

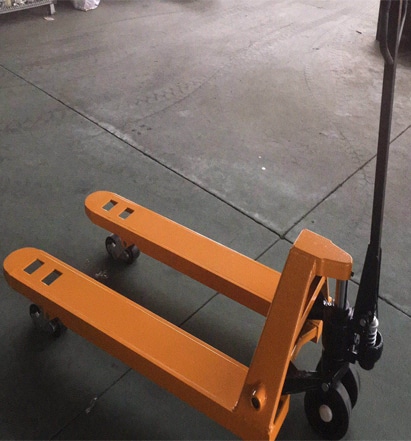

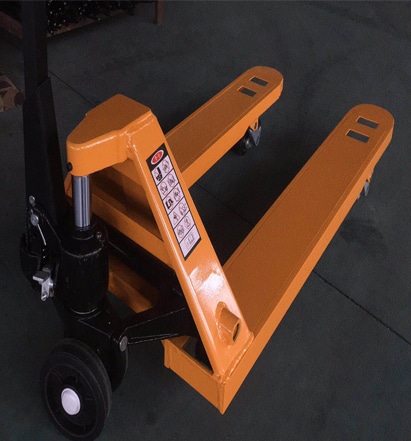

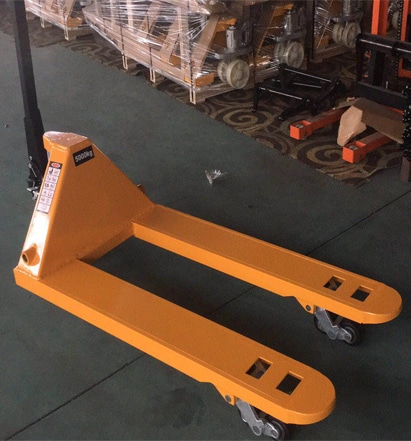

WB50 Heavy Duty Hand Pallet Truck
Heavy Duty Hand Pallet Truck
WB50
Capacity: 5tons
- 24-Hour Online Support
- Global Service Network
- Technical Solutions
- Specifications
- 3D View
- Benefits & Features
| CARRY•UP WB SPECIFICATION | |||||||||
| 1 | 5T Hand Pallet Truck | ||||||||
| Specification | 2 | Model | WB (heavy duty) | ||||||
| 3 | Capacity | kg | 5000 | ||||||
| 4 | Tyre size, front | mm | ￠200 | ||||||
| 5 | Tyre size, rear | mm | ￠80 | ||||||
| 6 | Lifting height | h3(mm) | 207 | ||||||
| 7 | Lowered fork height | h13(mm) | 88/77 | ||||||
| 8 | Overall length | l1(mm) | 1620 | ||||||
| 9 | Fork dimensions | s/e/l(mm) | 57/160/1220(1150) | ||||||
| 10 | Width overall forks | b5(mm) | 685/550 | ||||||
| 11 | Net weight | kg | 110 | ||||||
Capacity 5000 kg
Strengthed forks for a reliable quality.
High reliability and long service lift of 5 years.
- Double lifting speed when loads under 600kg,which turns back to regular speed when above it.
- Impact free lifting ensures safety of cargo loading.
- The Lifting system is equipped with overloading protection valve to ensure the safe operation.
- The utilized structural design guarantees the convenience of assembling and disassembling.
- Light-weight fork frame,made from high rigidity steel plate.
- Compact appearance,innovative separated Rock Arm,ensure the whole truck evenly pressed.
- There is a finger hole in the connection of handle and pump,easy to assemble.
