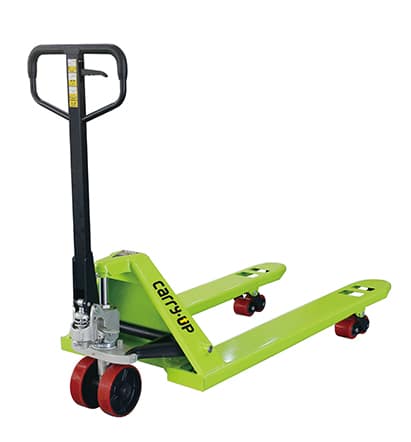

BF-III Hand Pallet Truck
Hand Pallet Truck
BF-III
Capacity: 2.5tons
- 24-Hour Online Support
- Global Service Network
- Technical Solutions
- Specifications
- 3D View
- Benefits & Features
| HAND PALLET TRUCK BF-III SPECIFICATION | ||||||
| Specification | 1 | Product | 2.5T Hand Pallet Truck | |||
| 2 | Model | BF-III | ||||
| 3 | Capacity | kg | 2000 | 2500 | 3000 | |
| 4 | Steering wheel size | mm | ￠180×50 | |||
| 5 | Fork wheel tandem | mm | Φ74×70/Φ80×70 | |||
| 6 | Fork wheel single | mm | Φ74×93/Φ80×93 | |||
| 7 | Max. Lifting height | mm | ≥110 | |||
| 8 | Lowered height | mm | 85/75 | |||
| 9 | Overall length | mm | 1315-1620 | |||
| 10 | Fork length | mm | 915/1100/1150/1220 | |||
| 11 | Width overall forks | mm | 520/540/685 | |||
| 12 | Turning radius | mm | 1120/1300/1350/1450 | |||
| 13 | Material of wheel | kg | PU/Nylon/Rubber | |||
| 14 | Service weight | kg | 68~81 | |||
- Integrated pump without welding , no any leaking problems.
- Frame force is more reasonable , and the strength is more reliable.
- Handle seat has hole it is more convenient for installation of control chain.
- Forks lowering speed is controllable, with overload valve to avoid overloading.
Remark: Special size for width and length can be made according to customer’s requirement.
Option:
1) steering wheel 200mm (fork wheel 80mm) are available.
2) Nylon wheel, polyurethane wheel, rubber wheel, single fork roller or tandem fork rollers.
3) Fork length:800mm,900mm,1000mm,1100mm.
4) Foot pedal release.
5)Pump color: black paiting.
6)Quick lift (double speed lifting)
