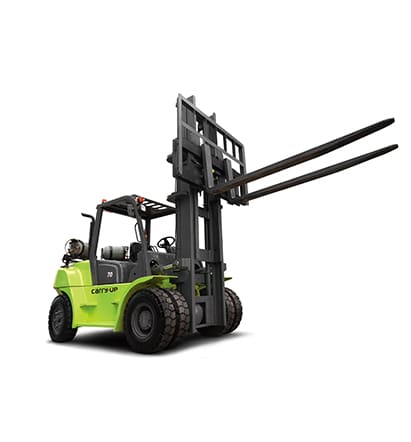

FGY50/ FGY60/ FGY70 LPG & Gasoline Forklift
LPG & Gasoline Forklift
FGY50/FGY60/FGY70
Capacity: 5tons,6tons,7tons
Max.lift height :3000~7000mm
- 24-Hour Online Support
- Global Service Network
- Technical Solutions
- Specifications
- 3D View
- Mast information
| |||||||||||||||
| General | 1 | Model | FGY50 | FGY60 | FGY70 | ||||||||||
| 2 | Power Type | Gasoline&LPG Forklift | |||||||||||||
| 3 | Rated Capacity | kg | 5000 | 6000 | 7000 | ||||||||||
| 4 | Load Centre | mm | 600 | 600 | 600 | ||||||||||
| Characteristic&Dimension | 5 | Lift Height | mm | 3000~6000 | 3000~6000 | 3000~6000 | |||||||||
| 6 | Fork Size | L×W×T | mm | 1220×150×60 | 1220×150×60 | 1220×150×60 | |||||||||
| 7 | Mast Tilt Angle | F/R | Deg | 6°/12° | 6°/12° | 6°/12° | |||||||||
| 8 | Fork Overhang (Wheel center to fork face) | mm | 590 | 590 | 595 | ||||||||||
| 9 | Ground Clearance（Bottom of mast） | mm | 200 | 200 | 200 | ||||||||||
| 10 | Overall Dimension | Length to face of fork(Without fork) | mm | 3450 | 3450 | 3560 | |||||||||
| 11 | Overall Width | mm | 2010 | 2010 | 2010 | ||||||||||
| 12 | Mast Lowered Height | mm | 2500 | 2500 | 2500 | ||||||||||
| 13 | Mast Extended Height(With backrest) ） | mm | 4415 | 4415 | 4415 | ||||||||||
| 14 | Overhead Guard Height | mm | 2470 | 2470 | 2470 | ||||||||||
| 15 | Turning Radius (outside) | mm | 3250 | 3250 | 3350 | ||||||||||
| Performance | 16 | Speed | Travel (Full load) | km/h | 30 | 30 | 30 | ||||||||
| 17 | Lifting (Full load) | mm/s | 500 | 500 | 460 | ||||||||||
| 18 | Max.Gradeability | % | 20 | 20 | 20 | ||||||||||
| Chassis | 19 | Tyre | Front | mm | 8.25-15-14PR | 8.25-15-14PR | 8.25-15-14PR | ||||||||
| 20 | Rear | mm | 8.25-15-14PR | 8.25-15-14PR | 8.25-15-14PR | ||||||||||
| 21 | Wheelbase | mm | 2250 | 2250 | 2250 | ||||||||||
| 22 | Self weight | kg | 8150 | 8750 | 9750 | ||||||||||
| Power&Transmission | 23 | Battery | Voltage/Capacity | V/Ah | (12V/80Ah) x 2 | (12V/80Ah) x 2 | (12V/80Ah) x 2 | ||||||||
| 24 | Engine | Model | GM4.3 | GM4.3 | GM4.3 | ||||||||||
| 25 | Manufacture | GM | GM | GM | |||||||||||
| 26 | Rated output/r.p.m. | kw | 56/2200 | 56/2200 | 56/2200 | ||||||||||
| 27 | Rated torque/r.p.m. | N·m | 240/750 | 240/750 | 240/750 | ||||||||||
| 28 | No.of Cylinder | 6 | 6 | 6 | |||||||||||
| 29 | Bore×Stroke | L | 101.6×88.39 | 101.6×88.39 | 101.6×88.39 | ||||||||||
| 30 | Displacement | cc | 4300 | 4300 | 4300 | ||||||||||
| 31 | Fuel Tank Capacity | L | 140 | 140 | 140 | ||||||||||
| 32 | Transmission | Type | Hydraulic | Hydraulic | Hydraulic | ||||||||||
| 33 | FWD/RVS | 2/1 | 2/1 | 2/1 | |||||||||||
