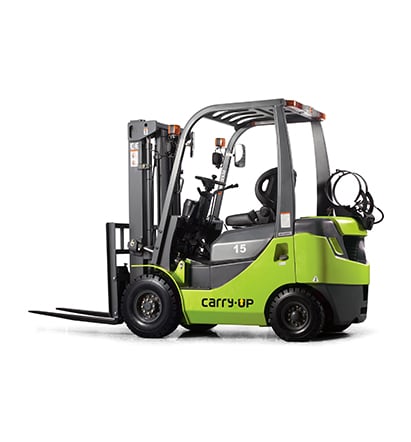

FGY10/FGY15/FGY18 Gasoline & LPG Forklift

Gasoline & LPG Forklift

FGY10/FGY15/FGY18

Capacity: 1ton,1.5tons,1.8tons

Max.lift height :3000~7000mm

CARRY.UP Gasoline & LPG Forklift Specifications
General	1	Model				FGY10	FGY15	FGY18
	2	Power Type				Gasoline&LPG	Gasoline&LPG	Gasoline&LPG
	3	Rated Capacity			kg	1000	1500	1800
	4	Load Centre			mm	500	500	500
Characteristic&Dimension	5	Lift Height			mm	3000	3000	3000
	6	Fork Size		L×W×T	mm	920×120×35	920×120×35	920×120×35
	7	Mast Tilt Angle		F/R	Deg	6°/12°	6°/12°	6°/12°
	8	Front Overhang (Wheel center to fork face)			mm	420	420	420
	9	Ground Clearance（Bottom of mast）			mm	110	110	110
	10	Overall Dimension		Length to face of fork(Without fork)	mm	2215	2295	2295
	11			Overall Width	mm	1086	1086	1086
	12			Mast Lowered Height	mm	1995	1995	1995
	13			Mast Extended Height(With backrest)	mm	3940	3940	3940
	14			Overhead Guard Height	mm	2040	2040	2040
	15	Turning Radius (outside)			mm	1975	2055	2055
	16	Min. insecting asisle				2070	2150	2150
Performance	17	Speed		Travel (No load)	km/h	15	15	15
	18	Speed		Lifting(Full load)	mm/s	460	450	440
	19	Max.Gradeability (No load/Full load)			%	20	20	20
Chassis	20	Tire		Front	mm	6.50-10-10PR	6.50-10-10PR	6.50-10-10PR
	21	Tire		Rear	mm	5.00-8-10PR	5.00-8-10PR	5.00-8-10PR
	22	Wheelbase			mm	1400	1400	1400
	23	Service weight			kg	2490	2820	3000
Power&Transmission	24	Battery	Voltage/Capacity		V/Ah	12/80	12/80	12/80
	25	Engine	Model			K21	K21	K21
	26		Manufacture			NISSAN	NISSAN	NISSAN
	27		Rated output/r.p.m.		kw	31.2/2250	31.2/2250	31.2/2250
	28		Rated torque/r.p.m.		N·m	143.7/1600	143.7/1600	143.7/1600
	29		No.of Cylinder			4	4	4
	30		Bore×Stroke		mm	89×83	89×83	89×83
	31		Displacement		cc	2065	2065	2065
	32		Fuel Tank Capacity		L	45	45	45
	33	Transmission	Type			hydraulic	hydraulic	hydraulic
	34	Transmission	Stage	FWD/RVS		1/1	1/1	1/1
