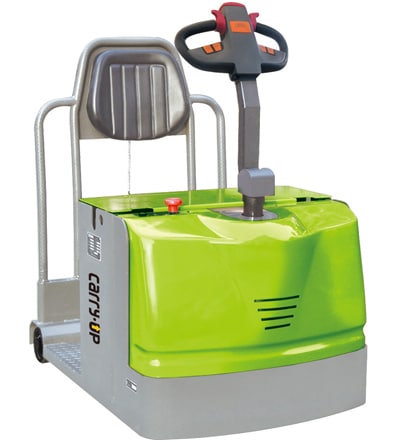

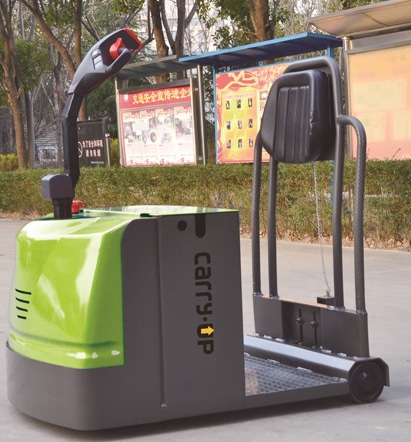

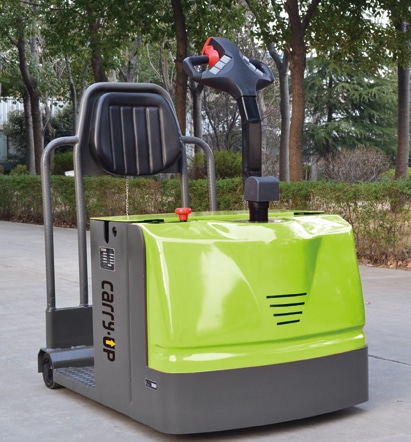

QDD20H Electric Tow Tractor

Electric Tow Tractor

QDD20H

Capacity: 2tons

QDD20H ELECTRIC TOW TRACTOR
General	1	Model				QDD20H
	2	Power Type				Electric
	3	Operation Type				Stand-on
	4	Rated Capacity			kg	2000
	5	Load Centre			mm	/
Characteristic&Dimension	6	Tyre		Front /rear Type		Rubber/PU
	7			Front Wheel Size	mm	φ215×75
	8			Driving Wheel Size	mm	φ100×40
	9			Balance Wheel Size	mm	/
	10			Front/rear Number (X=drive)		1X / 2
	11	Overall Dimension		Overall Height	mm	1435
	12			Min. under-clearance	mm	50
	13			Hook Height	mm	120～220
	14			Overall Length	l1(mm)	1230
	15			Wheelbase	y(mm)	883
	16			Overall Width	b1(mm)	600
	17			Tread (front/rear)	b3/b4(mm)	0/510
	18	Turning Radius			Wa(mm)	1070
Performance	19	Drive Speed(laden/unladen)			km/h	4/6.7
	20	Towing Power (S2 5)			N	2300
	21	Steering Type				Manul
	22	Service Brake Type				Electromagnetism
	23	Service Brake				Handle
	24	Parking Brake Type				Electromagnetism
	25	Max.Gradeability(S2 5)(Laden/unladen)			%	/
	26	Service Weight(include battery)			kg	520
Power	27	Motor	Drive Motor Type			AC/DC
	28	Motor	Drive Motor		kw	1.5/1.2
	29	Battery	Voltage/Capacity		V/Ah	24/210
	30	Battery	Weight		kg	200
