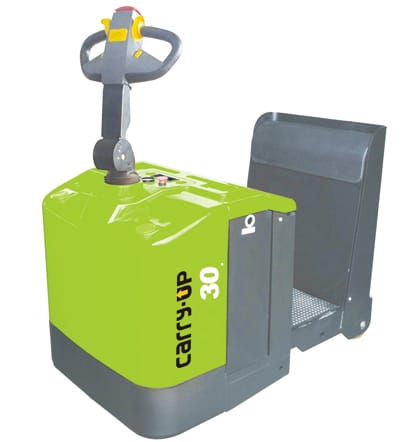

CBD30Q / CBD45Q Electric Tow Tractor
Electric Tow Tractor
CBD30Q / CBD45Q
Capacity: 3tons, 4.5tons,3tons
- 24-Hour Online Support
- Global Service Network
- Technical Solutions
- Specifications
- 3D VIEW
- Video
| CBD20Q /CBD30Q / CBD45Q Series ELECTRIC TOW TACTOR SPECIFICATION | |||||||||
| Specification | 1 | Model | CBD20Q | CBD30Q | CBD45Q | ||||
| 2 | Operating type | Stand on | |||||||
| 3 | Power type | electric | |||||||
| 4 | Load Capacity | kg | 2000 | 3000 | 4500 | ||||
| 5 | Wheel type | PU | |||||||
| 6 | Wheel quantity(Driving/Bearing) | 1/2 | 1/2 | 1/2 | |||||
| 7 | Driving wheel size | mm | 215×75 | 248*75 | 248*75 | ||||
| 8 | Bearing wheel size | mm | 100×40 | 160*73 | 160*73 | ||||
| Dimensions | 9 | Overall length | mm | 1230 | 1369 | 1369 | |||
| 10 | Overall width | mm | 600 | 790 | 790 | ||||
| 11 | Min.turning radius | mm | 1070 | 1255 | 1255 | ||||
| 12 | Min.groundclearance | mm | 50 | 34.5 | 34.5 | ||||
| 13 | Coupler height | mm | 120～220 | 287.5 | 287.5 | ||||
| Drive | 14 | Service Weight（include battery ） | kg | 520 | 810 | 810 | |||
| 15 | Battery | Voltage | V | 24 | 24 | 24 | |||
| 16 | Capacity | Ah | 210 | 270 | 270 | ||||
