CDD16V/CDD20V Electric Stacker
ELECTRIC STACKER
CDD16V/CDD20V
Capacity: 1.6tons，2tons
Max.lift height 2m-6m
- 24-Hour Online Support
- Global Service Network
- Technical Solutions
- Specifications

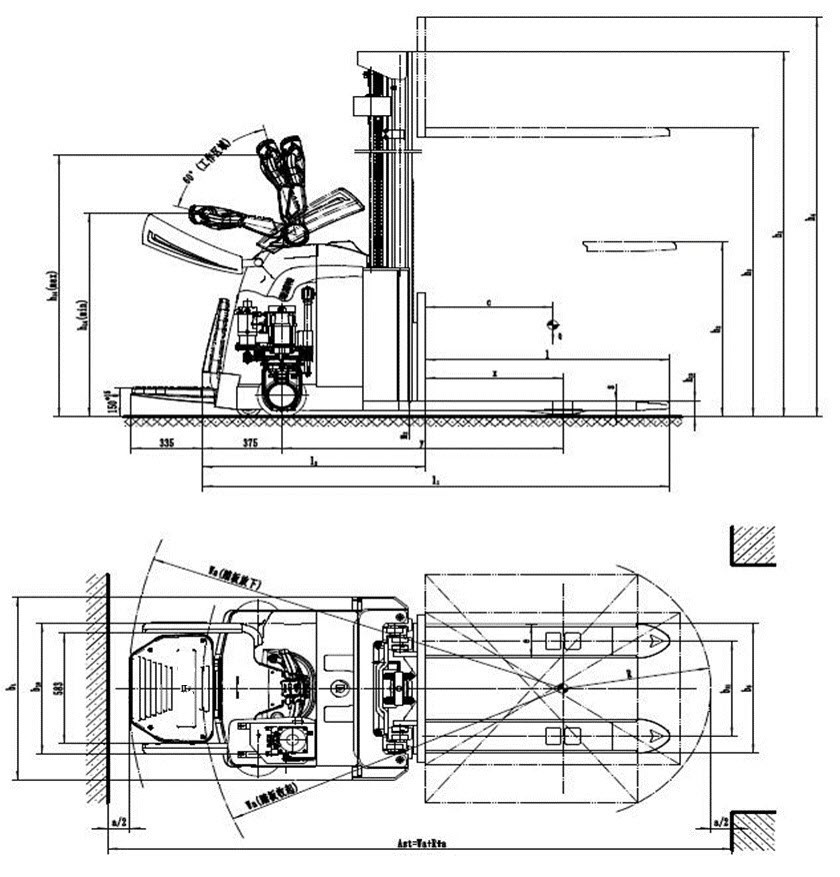

- 3D View
- Mast information

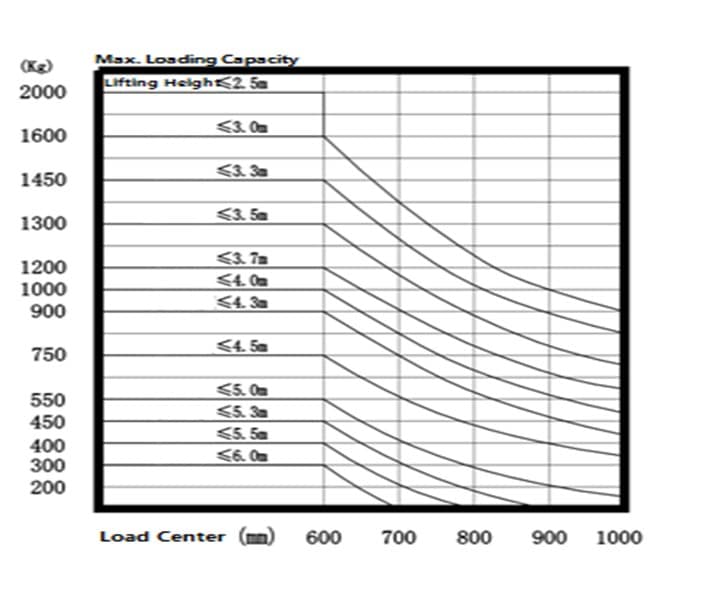

- Chart
| CDD16V/CDD20V ELECTRIC STACKER | |||||||||
| Specification | 1 | Model | CDD16V | CDD20V | |||||
| 2 | Operating Type | Stand on | |||||||
| 3 | Power Type | Electric | |||||||
| 4 | Load Capacity | kg | 1600 | 2000 | |||||
| 5 | Load Center | c(mm) | 600 | ||||||
| 6 | Wheel Type | PU | |||||||
| 7 | Wheelbase | y(mm) | 1293 | ||||||
| 8 | Driving Wheel Size | mm | ￠230×75 | ||||||
| 9 | Balance Wheel Size | mm | ￠115×55 | ||||||
| 10 | Bearing Wheel Size | mm | ￠80×80 | ||||||
| 11 | Wheels Number，front/rear（x=driven wheels） | 1x-2/4 | |||||||
| 12 | Thread,Rear | mm | 690 | ||||||
| Dimensions | 13 | Lowered Mast Height | h1(mm) | 2015 | |||||
| 14 | Max.lifting Height | h3(mm) | 3000 | 2500 | |||||
| 15 | Extended Mast Height | h4(mm) | 3580 | 3080 | |||||
| 16 | Lowered Fork Height | h5(mm) | 85 | ||||||
| 17 | Overall Length | l1(mm) | 2169 | ||||||
| 18 | Length to Face of Forks | l2(mm) | 1019 | ||||||
| 19 | Overall Width | b1(mm) | 963 | ||||||
| 20 | Fork Dimensions | S/e/l(mm) | 55/180/1150 | ||||||
| 21 | Width over Forks | b3(mm) | 680/570 | ||||||
| 22 | Aisle Width, with Pallet 1000×1200 Crosswise | Ast(mm) | 2566/2909 | ||||||
| 23 | Aisle Width, with Pallet 800×1200 Lengthwise | Ast(mm) | 2552/2895 | ||||||
| 24 | Groud Clearance | m (mm) | 31.5 | ||||||
| 25 | Turning Radius(foot padel fold/unfold) | mm | 1670/2013 | ||||||
| Performance | 26 | Speed | Travel(Laden/unladen) | km/h | 5/5 | ||||
| 27 | Lifting (Laden/unladen) | mm/s | 90/120 | ||||||
| 28 | Lowering(Laden/unladen) | mm/s | 120/110 | ||||||
| 29 | Max.Gradeability | (Laden/unladen) | % | 5/8 | |||||
| 30 | Service Weight（include battery ） | kg | 1390 | 1410 | |||||
| Driven | 31 | Service brake | Electromagnetic | ||||||
| 35 | Battery | Voltage/noinal capacity | V/Ah | 24/240 | 24/270 | ||||
| 36 | Weight | kg | 240 | 260 | |||||
| Other | 37 | Noise Level Operator’s Ear,according to DIN12053 | dB (A) | ≤70 | |||||
| CDD16V/20V Duplex mast | |||||||||
| No. | Lift height h3（mm） | Mast Lowered Height h1（mm） | Free Lift h2(mm) | Mast Extended Height h4(mm) | |||||
| 1 | 2000 | 1515 | 0 | 2580 | |||||
| 2 | 2300 | 1665 | 0 | 2880 | |||||
| 3 | 2500 | 1765 | 0 | 3080 | |||||
| 4 | 2700 | 1865 | 0 | 3280 | |||||
| 5 | 3000 | 2015 | 0 | 3580 | |||||
| 6 | 3300 | 2165 | 0 | 3880 | |||||
| 7 | 3500 | 2265 | 0 | 4080 | |||||
| 8 | 3700 | 2365 | 0 | 4280 | |||||
| 9 | 4000 | 2565 | 0 | 4630 | |||||
| CDD16V/CDD20V Triplex Mast | |||||||||
| No. | Lift height h3（mm） | Mast Lowered Height h1（mm） | Free Lift h2(mm) | Mast Extended Height h4(mm) | |||||
| 1 | 3500 | 1710 | 1130 | 4100 | |||||
| 2 | 3700 | 1810 | 1230 | 4300 | |||||
| 3 | 4000 | 1910 | 1330 | 4600 | |||||
| 4 | 4300 | 2010 | 1430 | 4900 | |||||
| 5 | 4500 | 2060 | 1480 | 5100 | |||||
| 6 | 5000 | 2210 | 1630 | 5600 | |||||
| 7 | 5300 | 2310 | 1730 | 5900 | |||||
| 8 | 5500 | 2410 | 1830 | 6100 | |||||
| 9 | 6000 | 2610 | 2030 | 6600 | |||||
