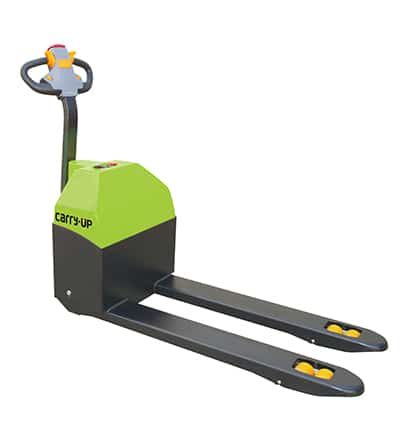

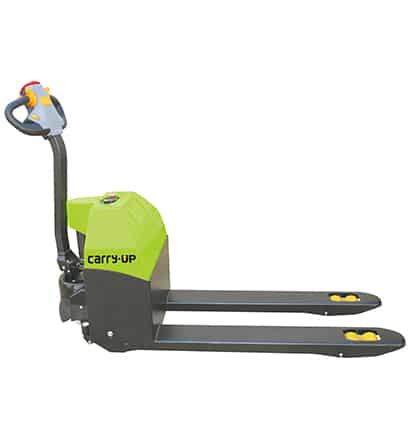

CBD15S Electric Pallet Truck

ELECTRIC PALLET TRUCK

CBD15SG

Capacity: 1.5tons.

ELECTRIC PALLET TRUCK CBD15S SPECIFICATION
Specification	1	ELECTRIC PALLET TRUCK CBD15S S
	2	Model			CBD15S
	3	Operating type			Walkie
	4	Power type			electric
	5	Load Capacity		kg	1500
	6	Load Center		c(mm)	500
	7	Wheels type			PU
	8	driving wheel size		mm	￠210×70
	9	Balance wheel size		mm	0
	10	Bearing wheel size		mm	￠80×93/￠80×70
	11	Wheel quantity-D/B/F（drving wheel/balance wheel/front wheel)			1/0/2(4)
	12	Thread,front		b10(mm)	413
	13	Thread,rear		b11(mm)	518
Dimensions	14	Max.lifting height		h3(mm)	195
	15	Min.fork lowered height		h13(mm)	80
	16	Overall length		l1(mm)	1670
	17	Overall width		b1(mm)	680
	18	Fork dimensions(s/e/l)		s/e/l(mm)	53/160/1150
	19	Overall fork width		b5(mm)	550/685
	20	Turning radius		mm	1470
Performance	21	Speed	Travel (Laden/unladen)	km/h	3.5/4
	22	Max.Gradeability	(Laden/unladen)	%	3/10
	23	Service Weight（include battery ）		kg	210
Driven	24	Service brake		/	/
	25	Motor	Driven Motor	kw	0.75
	26		Lift Motor	kw	0.8
	27		Steering motor	kw	/
	28	Battery	Voltage/noinal capacity	V/Ah	24/75
	29		Weight	kg	24×2
	30		Size(L×W×H)	mm	260×170×230
	31	Brake	Electromagnetic / Regenerative
