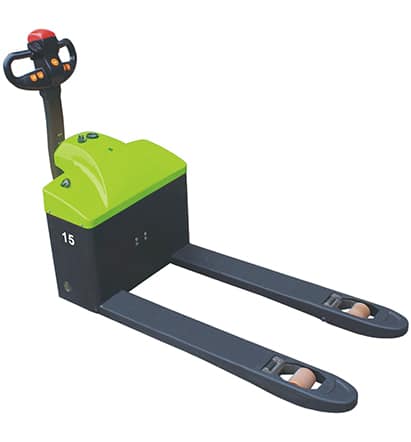

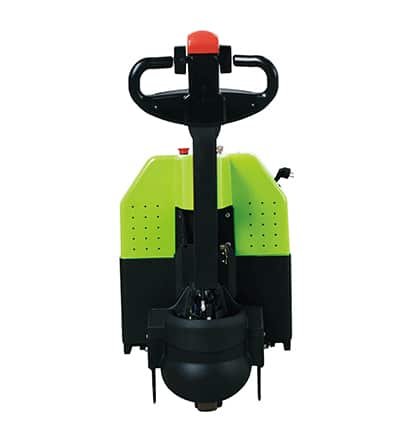

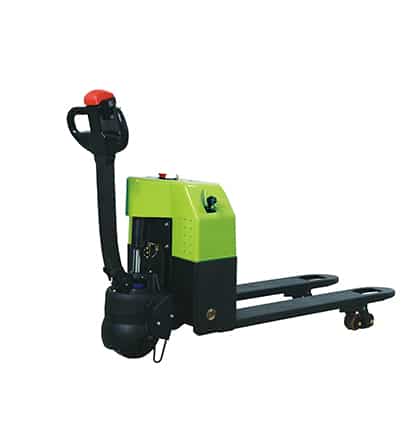

CBD15G Electric Pallet Truck

ELECTRIC PALLET TRUCK

CBD15G

Capacity: 1.5tons.

Fork width 550/685

Fork Length 1150/1220

Battery 24V/70AH

ELECTRIC PALLET TRUCK CBD15G SPECIFICATION
Specification	1	Model			CBD15G
	2	Operating type			Walkie
	3	Power type			electric
	4	Rated Capacity		kg	1500
	5	Load Centre		mm	600
	6	Wheels type		mm	PU
	7	Wheel base		mm	1301
	8	Wheel quantity-D/B/F		mm	1/0/4
	9	driving wheel size		mm	￠252×67
	10	Balance wheel size		mm	￠84×70（Double wheel）
	11	Bearing wheel size		mm	/
Dimensions	12	Min.fork lowered height		mm	90
	13	Max.fork lifting height		mm	205
	14	Max.lifting height		mm	120
	15	Overall fork width		mm	550/685
	16	Fork length		mm	1150/1200
	17	Fork width		mm	160
	18	Fork thickness		mm	75
	19	Overall length		mm	1707
	20	Overall width		mm	697
	21	Overall height(With handle)		mm	1181
	22	Overall height(Without handle)		mm	714
	23	Min.Turning radius		mm	1547
	24	Min.Aisle width for pallets 800×1200		mm	1920
	25	Min.Aisle width for pallets 1000×120		mm	1953
Performance	26	Speed	Travel (Laden/unladen)	km/h	3/3.5
	27		Lifting (Laden/unladen)	mm/s	56/60
	28		Lowering (Laden/unladen)	mm/s	57/59
	29	Max.Gradeability	(Laden/unladen)	%	5/7
	30	Service Weight（include battery ）		kg	275
Driven	31	Motor	Driven Motor	kw	DC 0.63
	32		Lift Motor	kw	DC 0.8
	33		Steering motor	kw	/
	34	Battery	Standard	V/Ah	24/70
	35	Controller	Manufacturer		CURTIS
	36	Brake			Electromagnetic / Regenerative
